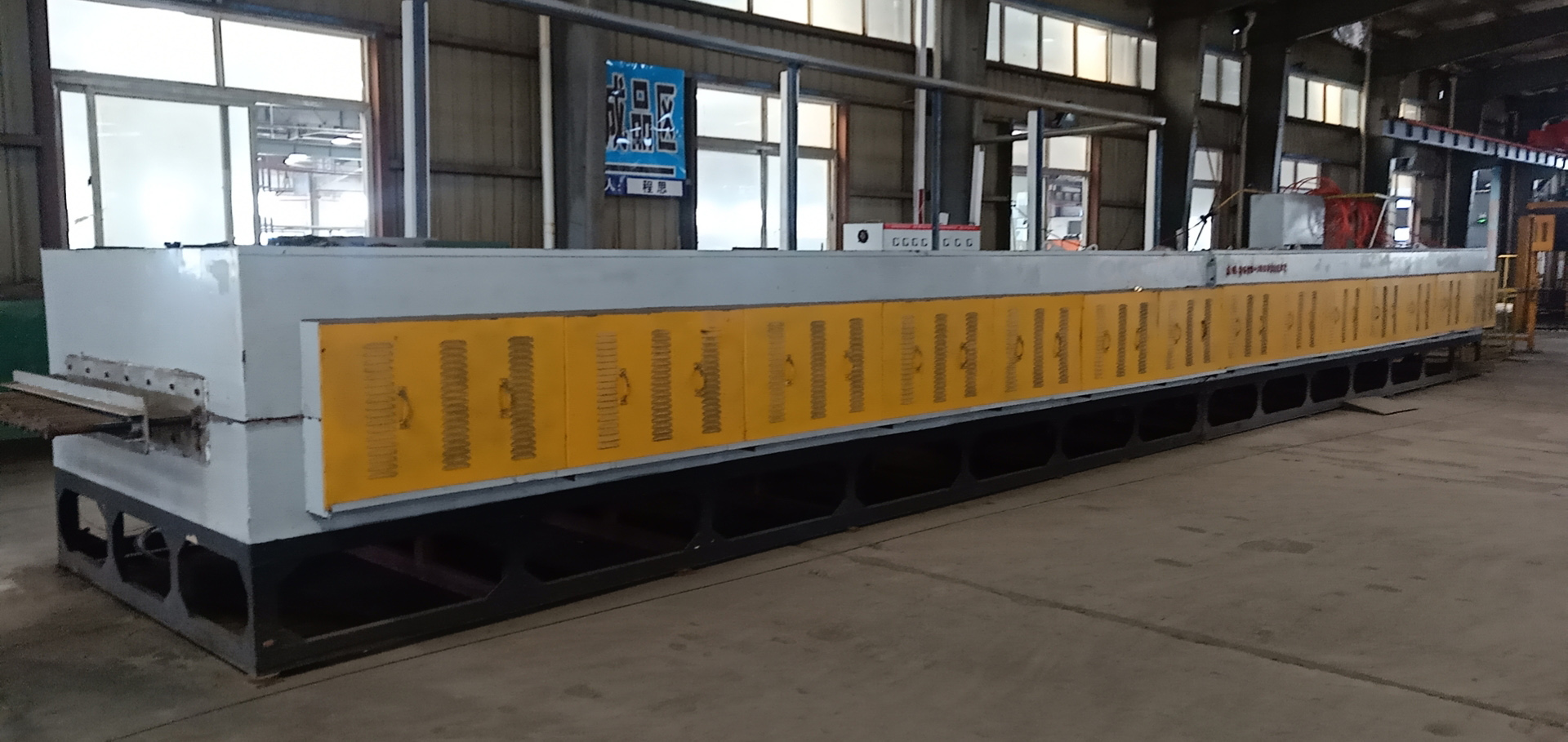

The electric furnace is a continuous operation electric furnace, which is suitable for heat treatment of high carbon steel wire, copper wire and iron wire. The common temperature is 950 ℃, and the maximum working temperature is 1050 ℃.

Technical parameters:

Processing materials: 82B, 72A, 60 × 10, 40 × 10, 45 × 10, Q195, Q235

Treatment wire diameter: φ 1.80 - φ 4.0mm

Power supply: AC, single-phase 220V

Heating power: 320kw

Common temperature: 950 ℃

Maximum temperature: 1050 ℃

Temperature rise of empty furnace per hour: 150 ℃

Furnace surface temperature: ≤ 45 ℃

Pipe diameter: φ 38 * 3 * 18 pieces (310ssi2)

Annealing head number: 18

Furnace length: 18m

Number of temperature control zones: 5 zones

Heating mode: resistance wire heating, high temperature alloy resistance wire
